Abrasive Blast Room Systems

Blast rooms are large blasting enclosures designed to handle work too large even for the biggest size job. A blast room contains both the work piece and the operator. A dust collection system provides visibility; recovery floor sections convey the spent abrasive to an abrasive cleaning system which returns only good abrasive to the blast machine. The following are common applications for blast rooms:

Large Steel Fabrications or Members

Military or Commercial Vehicles

Aircraft

Rail Cars

Construction Equipment

Anything else too big or which cannot fit in a hand cabinet

Blast rooms consist of several key components that need to work with each other, and need to be selected based upon the specific needs of the application:

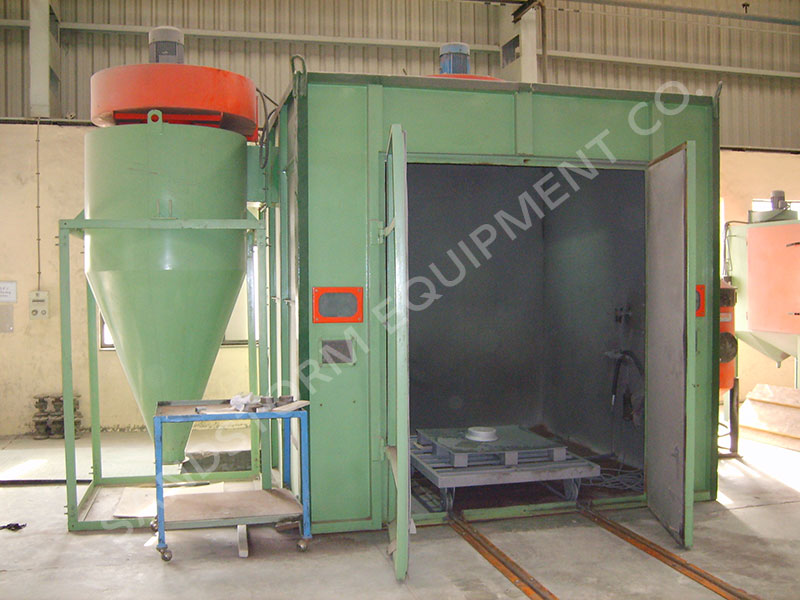

Large Size Blast Room

 Enclosure

 Dust collector

 Abrasive Recovery Floor

 Abrasive Reclamation and Cleaning System

 Blast pots

 Material Handling Systems

 Operator Systems (man lifts etc.)

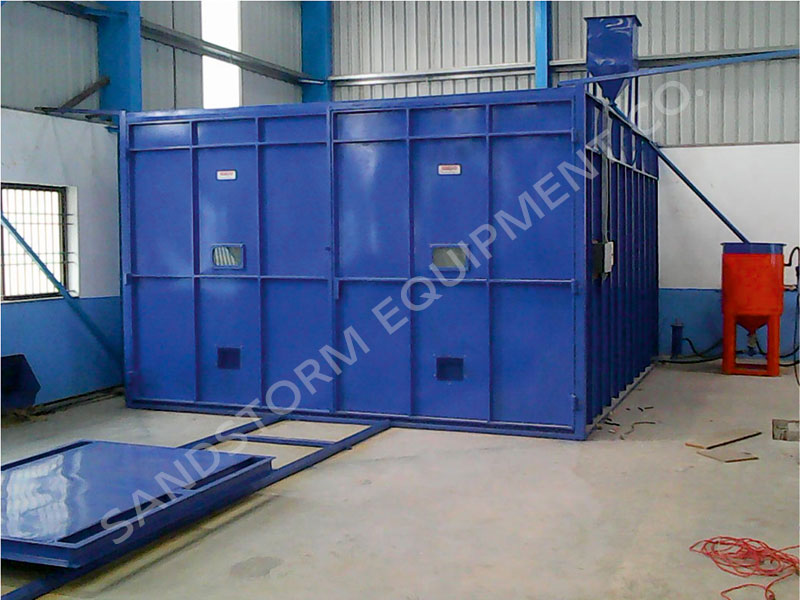

Blast Room System

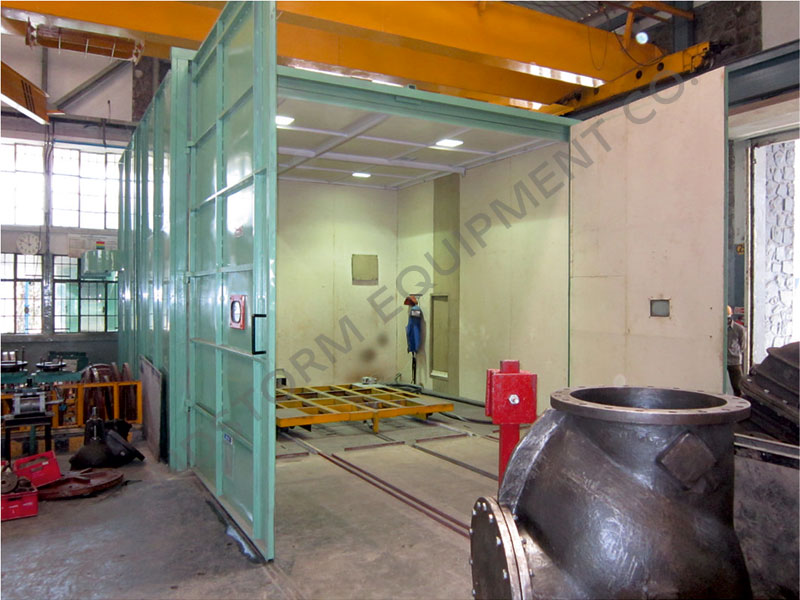

Blast Room
Jumbo Blast Rooms

Sandstorm also designs custom made blast room system that works for the particular needs of your application and organization. We also have several standard or pre-engineered blast room packages that are economical and suit a variety of common applications. We provide complete solutions for blast room projects including engineering design, abrasive media selection, operator safety kit, turn-key installation, maintenance, and training.

Standard pre-assembled blast room sizes

Model No. Working chamber size in(mm)
SEC-BR-3030 3000(L) X 3000(W) X 2500(H)
SEC-BR-3040 4000(L) X 3000(W) X 2500(H)
SEC-BR-3050 5000(L) X 3000(W) X 2500(H)
SEC-BR-3060 6000(L) X 3000(W) X 3000(H)

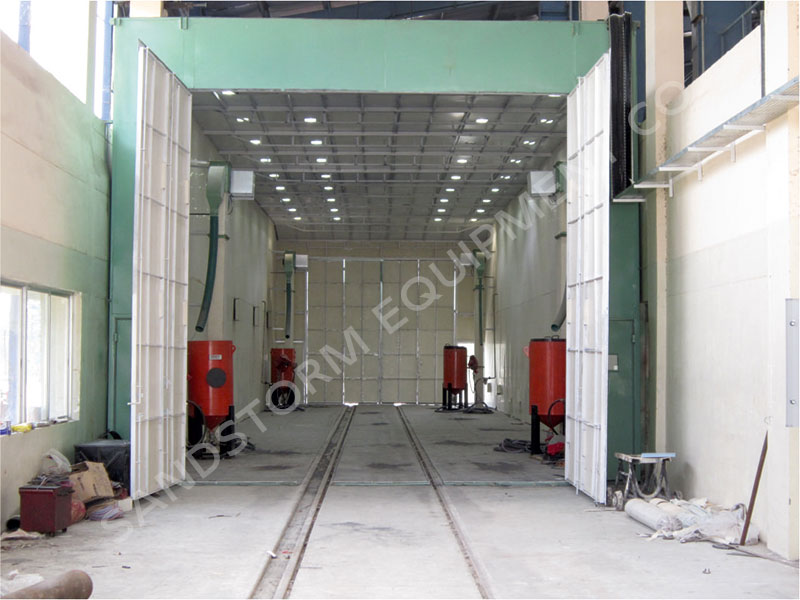

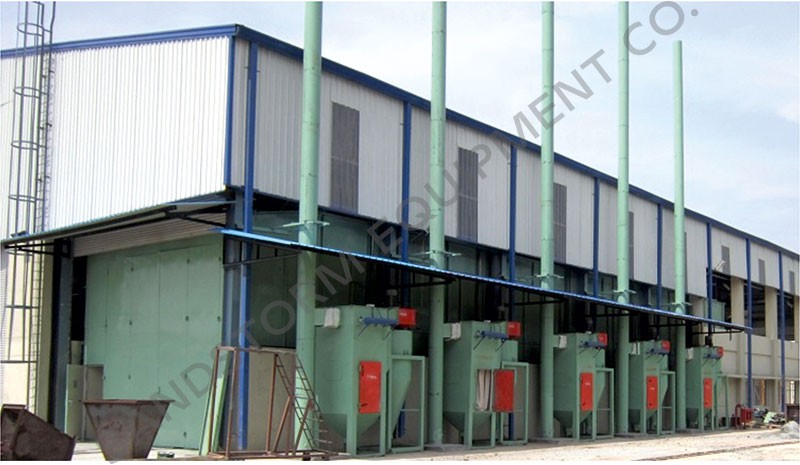

Rail Coach Blast Room System

Sweep in corner floor abrasive recovery system

 Air injector type

 Bucket elevator type conveyor

Rail Coach Blast Room System

Partial floor abrasive recovery system

 Screw conveyor system

 Belt conveyor system

 Hopper recovery system

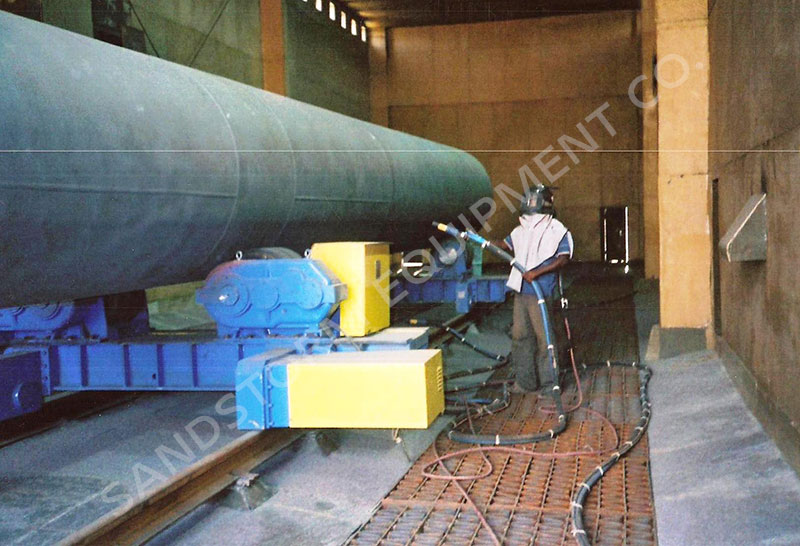

View inside the blast Room with job

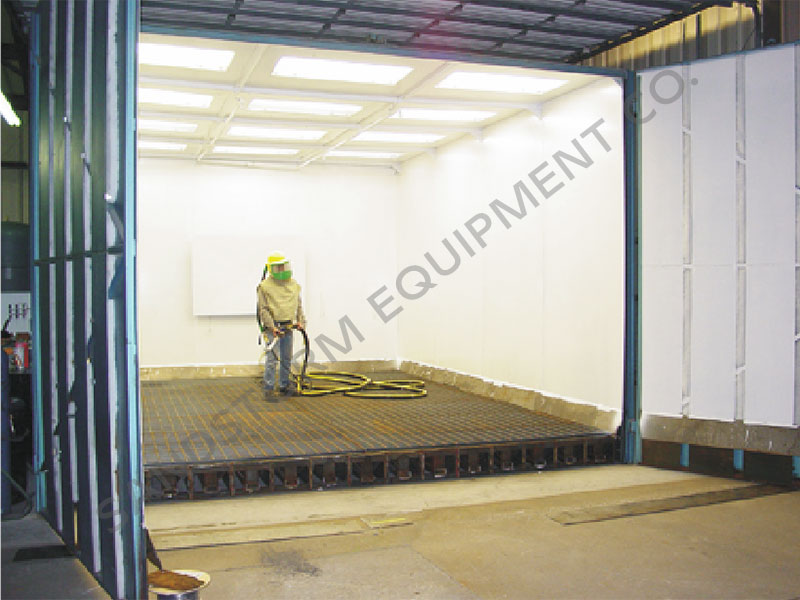

Full floor abrasive recovery system

 Deep hopper coupled with screw conveyor system

 Deep hopper coupled with belt conveyor system

 Flat rake vane oscillating system

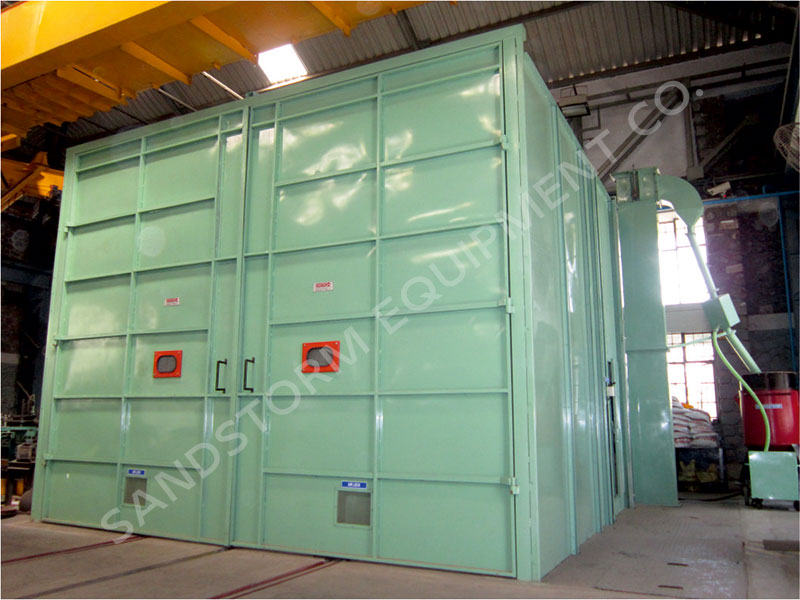

Medium Size Blast Room

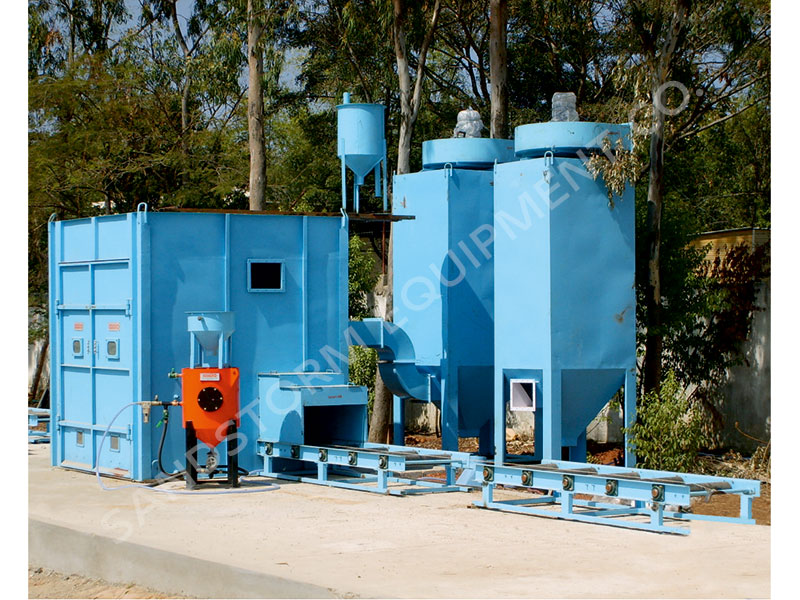

Small Size Blast Room
